REFERENCE SAMPLE SO-1








                    REFERENCE SAMPLE SO-1



REFERENCE SAMPLE SO-1

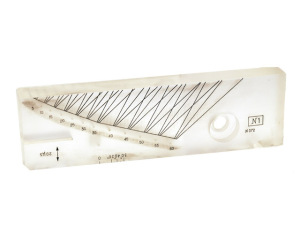

Standard samples SO-1 are designed to determine the conditional sensitivity, check the resolution and error of the depth gauge of an ultrasonic flaw detector.





Specifications:





1 – made of organic glass according to GOST 17622;





2 – speed of propagation of a longitudinal ultrasonic wave at a frequency of 2.5 ± 0.2 MHz at a temperature of 20 ± 5 ° C





is 2670±133m/s;





3 – propagation time of ultrasonic vibrations in the forward and reverse directions 20 ± 1 μs;





4 – geometric dimensions comply with the requirements of GOST 14782.






Contents of delivery:





Sample SO-1, verification certificate.
